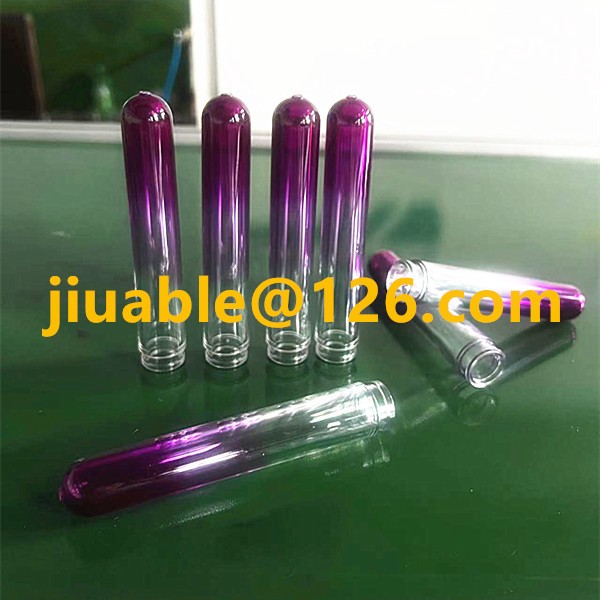

  • The Critical Role of Mold Flow Analysis (CAE) in Bi Injection Mold Design

    JiuAble company supply you the quality multiple shot pet cosmetic preforms mold, two tone preforms for cosmetics, twin colour cosmetic bottle pet preform mold

    In the realm of high-precision mold manufacturing, guessing is not an option. This is especially true for the complex interplay of materials in a two-shot preform mold. This is where Computer-Aided Engineering (CAE), specifically Mold Flow Analysis, transitions from a luxury to an absolute necessity. It is the digital proving ground that de-risks your significant investment long before the first block of steel is cut.

    Mold Flow Analysis is a simulation process that predicts how molten plastic will flow and behave within the mold cavity. For two-shot injection molding, this analysis must be performed for both materials, both independently and in interaction with each other.

    Key Insights Gained from CAE Analysis:

    Predicting and Eliminating Defects: The software can accurately predict potential defects such as air traps (which cause burns), weld lines (which weaken the structure), and sink marks. For two-shot molds, it is crucial for visualizing how the first material will shift or deform during the second injection, allowing engineers to adjust gate locations and injection speeds to prevent flaws.

    Optimizing Gate Design and Location: The gate is the entry point of the plastic into the cavity. CAE analysis helps determine the optimal type (e.g., valve gate, pinpoint), size, and location for the gates of both materials. This ensures balanced filling, minimizes shear stress on the polymers, and helps control the appearance of the gate vestige on the final preform.

    Balancing the Hot Runner System: In multi-cavity molds, achieving a balanced fill is paramount. Mold flow simulation shows if all cavities will fill at the same time and pressure. Imbalance leads to over-packing in some cavities and under-packing in others, causing part weight and quality variations. The analysis guides the hot runner design to ensure perfect balance.

    Evaluating Cooling Efficiency: Up to 80% of the cycle time is spent cooling. CAE software simulates the efficiency of the cooling channel layout. It identifies areas of the mold that may overheat, leading to extended cycle times and potential part warpage. This allows for the optimization of conformal cooling channels that follow the contour of the cavity, extracting heat uniformly and drastically reducing cycle times.

    By investing in upfront CAE analysis, we avoid costly trial-and-error modifications to the finished mold steel. This proactive approach saves time, reduces overall project cost, and guarantees that the final two-shot preform mold will perform flawlessly from its first shots. Partner with us for a data-driven, predictable mold design process.

    Lucia

    WhatsApp / WeChat: +86 183 5761 6586

    jiuable@126.com



  • Our Rigorous Validation Process for Double Colour Preform Bottle Molds

    JiuAble company supply you the quality duotone PET plastic preform mold, dual mold pet preforms, double shot pet jar preform mold, twin injection pet jars mould

    At our facility, “quality” is not just a final inspection; it is a philosophy embedded in every step of the mold manufacturing process. For a precision tool like a two-shot preform mold, a rigorous validation protocol is non-negotiable. We ensure every mold that leaves our facility is capable of producing million-unit runs of perfect PET preforms.

    1. First Article Inspection (FAI): After the initial mold trial, we produce a set of preforms for a First Article Inspection. This involves using Coordinate Measuring Machines (CMM) to verify that every critical dimension of the preform—weight, wall thickness, gate vestige, and overall geometry—is within the specified tolerances of the mold design.

    2. Layer Distribution Analysis: For two-shot molds, verifying the consistency of the material layers is paramount. We cross-section sample preforms and use microscopes or specialized imaging to measure the thickness of each layer at various points, ensuring uniform distribution as per the design intent.

    3. Functional Performance Testing: The true test of a preform is the bottle it becomes. We blow-mold sample preforms into bottles and subject them to rigorous tests:

    Top-Load Testing: Measures the bottle’s resistance to axial compression, critical for pallet stacking.

    Burst Pressure Testing: Pressurizes the bottle until failure, verifying its strength for carbonated applications.

    4. Production Run Validation: Before shipment, the mold is run continuously for an extended period (e.g., 24-72 hours) to monitor its performance under stable conditions. We document process parameters, cycle time consistency, and overall equipment efficiency (OEE) to prove the mold’s production readiness.

    This multi-layered approach to quality control provides our international clients with the absolute confidence that they are investing in a reliable, high-performance tool. Request our full quality assurance protocol.

    Lucia

    WhatsApp / WeChat: +86 183 5761 6586

    jiuable@126.com



  • The Complete Process: From Mold Design to Full-Scale Multi Color PET Preform Production

    JiuAble company supply you the quality dual injection cosmetic container preforms, double colour sport watering bottle PET mold, 2k drinking bottle preform mold

    Investing in a two-shot preform mold is a significant decision, and understanding the end-to-end process ensures a smooth, successful project. As a full-service China mold maker and production partner, we guide you through every critical phase, from initial concept to high-volume preform manufacturing.

    Phase 1: Design & Engineering (The Digital Blueprint)
    This is the most crucial phase. Our mold engineering team uses advanced CAE analysis software (like Moldflow) to simulate the entire injection molding process. We analyze:

    Mold Flow Simulation: Predicting how each material will fill the cavities, identifying potential weld lines, air traps, and ensuring balanced filling.

    Cooling Analysis: Optimizing the cooling channel layout to achieve a uniform temperature, which is critical for controlling cycle times and preventing warpage.

    Structural Analysis: Ensuring the mold design can withstand millions of cycles of high clamping pressure and mechanical movement.

    Phase 2: Precision Manufacturing (Bringing Steel to Life)
    With the design finalized, our workshop utilizes state-of-the-art CNC machining centers, wire-cut EDM, and deep-hole drilling machines to manufacture the mold components to exacting tolerances. The integration of the hot runner system is performed with meticulous attention to thermal management and alignment.

    Phase 3: Sampling & Validation (The Proof of Concept)
    The first shots are always a milestone. We conduct mold trials at our facility, producing samples for your approval. We measure preform weight, layer distribution, dimensions, and perform basic performance tests. This phase allows for any fine-tuning of the injection process parameters before mass production.

    Phase 4: Mass Production & Quality Assurance (Fulfilling Demand)
    Once approved, the mold is moved to a dedicated press for high-volume production. Our quality control protocol is relentless, involving statistical process control (SPC), regular dimensional checks, and burst testing on finished bottles to ensure consistent, flawless output.

    By managing this entire process under one roof, we eliminate communication gaps and ensure your two-shot preform mold project is a resounding success. Partner with us for a seamless, worry-free experience.

    Lucia

    WhatsApp / WeChat: +86 183 5761 6586

    jiuable@126.com



  • Beyond Beverages: Innovative Applications for Two Tone Bottle PET Mold

    JiuAble company supply you the quality dual injection PET water bottles, twin color plastic bottle mold, multi k bottled water packaging, multi shot PET mold

    When most people think of two-shot preform molds, they immediately envision advanced plastic bottles for carbonated soft drinks or water. However, the versatility of co-injection molding technology extends far beyond the beverage aisle. This advanced mold technology is unlocking new possibilities across diverse industries by solving complex packaging and product challenges.

    1. Pharmaceutical Packaging: The pharmaceutical industry demands absolute integrity and protection. Two-shot preforms are ideal for creating:

    Light-Blocking Containers: An outer layer of opaque, colored PET can protect light-sensitive liquid medications from UV degradation, ensuring potency and safety.

    Chemical Resistance: A specialized inner layer can provide a barrier against reactive drug compounds, preventing interaction with the container and maintaining formula stability.

    2. Cosmetics & Personal Care: Brand distinction is everything. Two-shot molding allows for stunning aesthetic designs that are integral to the container itself, eliminating the need for secondary processes like labelling or painting.

    Signature Looks: Create bottles with a soft-touch outer layer or a frosted, opaque exterior with a glossy, transparent inner glimpse of the product.

    Functional Design: Differentiate product lines with uniquely colored necks or grips that are molded in place, providing both branding and ergonomics.

    3. Automotive & Chemical Fluids: From motor oils to windshield washer fluids, two-shot preforms offer enhanced barrier properties that prevent permeability, preserving the quality and performance of aggressive chemicals. The robust, mono-material structure also aids in sustainable packaging efforts by ensuring easier recycling streams.

    4. High-End Spirits and Wines: Premium brands use packaging to communicate quality. Two-shot technology enables the creation of exceptionally premium and unique plastic bottles that can mimic the feel of glass but with the safety and lightweight advantages of plastic. An opaque outer layer can hide the fill level, while a transparent inner layer allows for product visibility upon pouring.

    The key to unlocking these applications lies in custom mold design. Our expertise as a leading mold manufacturer allows us to engineer two-shot preform molds tailored to your specific material requirements and end-use conditions. Contact us to innovate your product packaging.

    Lucia

    WhatsApp / WeChat: +86 183 5761 6586

    jiuable@126.com

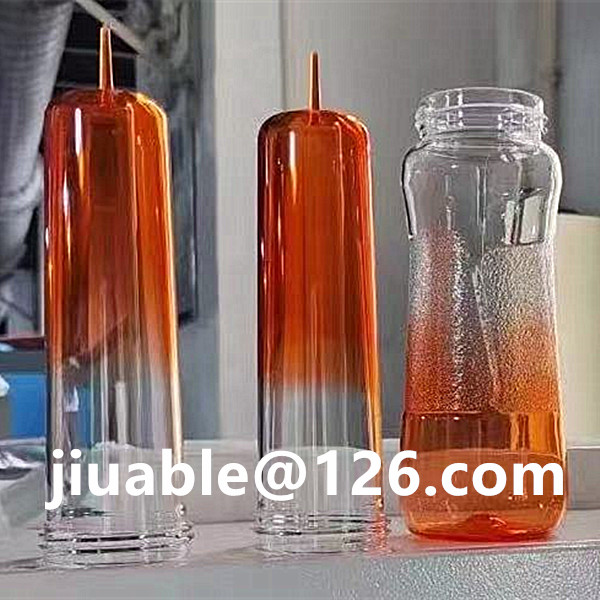

  • Material Selection Secrets for Successful Double Injection Preform Molding

    JiuAble company supply the dual colour sport bottle preform mold, bi injection sport water bottles, two tone drink bottle PET mold, twin shot drinking bottles

    The magic of two-shot molding isn’t just in the mold design; it’s in the marriage of materials. Selecting the right combination is a science critical to the success of your preform production. Not all polymers are compatible, and their properties must be carefully matched.

    The most common combination is various forms of PET:

    Virgin PET / rPET: The standard for sustainability. rPET core provides recycled content, while virgin PET outer layer ensures performance and clarity.

    PET / EVOH: The gold standard for oxygen barrier applications. EVOH is highly sensitive to moisture, so it must be perfectly encapsulated by the PET layers.

    PET / Nylon: Another strong option for barrier protection, with different performance characteristics than EVOH.

    Color Combinations: Using different colored PET materials to create unique visual effects.

    Key Compatibility Factors:

    Adhesion: Materials must bond strongly without delamination.

    Processing Temperatures: Melting points must be close enough to avoid degrading one material while processing the other.

    Shrinkage Rates: Differential shrinkage can cause warping or stress; this must be anticipated in the mold design.

    Our mold engineering team has extensive experience in material selection for two-shot injection molds. We simulate interactions using CAE analysis to prevent costly errors. Partner with us for a seamless material selection process.
